Supporting Information for “Construction, Deployment, and Usage of the Human Reference Atlas Knowledge Graph for Linked Open Data”

Andreas Bueckle^1*, Bruce W. Herr II^1*, Josef Hardi², Ellen M Quardokus¹, Mark Musen², Katy Börner^1*

¹ Department of Intelligent Systems Engineering, Luddy School of Informatics, Computing, and Engineering, Indiana University, Bloomington, IN, USA
² Stanford Center for Biomedical Informatics Research, Stanford University, Stanford, California, USA

* Corresponding authors

Basic Usage

Notebook to access an ASCT+B table for the kidney

This notebook exemplarily retrieves the most recent versions of all ASCT+B tables in the latest hra collection in the JSON format, which is one of the most widely used data exchange formats, and that can be read by almost every modern programming language. It then selects the table for the kidney. It then inspects the kidney table by outputting the number of rows, and finally prints a small selection of AS, CT, gene Bs, and scientific references for a particular AS-CT-B record.

The notebook is available here: https://github.com/x-atlas-consortia/hra-notebooks/blob/main/notebooks/hra-asctb-tables.ipynb

Notebook to query the HRA Knowledge Graph (KG)

In a slightly more advanced example, we show how you can query the HRA KG in three ways: (1) getting processed HRA DOs in JSON, see also above, (2) running a SPARQL query via grlc.io, and (3) running a SPARQL query you wrote on your own. The notebook presents this across three sections, see below. To illustrate this, we get the latest ASCT+B table for the kidney, then print the first five records (Example 1). Next, we run a SPARQL query to get a CSV file of all AS-CT-B records for the lymph node (Example 2). Then, we run a SPARQL query to get all triples in the HRA KG and print the first five. Finally, the notebook shows how you can compile a table of unique CTs in the cortex of kidney first declaratively (via SPARQL), and then imperatively (via JSON and Python):

Example 1: Get an HRA Digital Object (DO) as a JSON file
Example 2: Run a SPARQL query via ‘grlc’ with ‘requests’
Example 3: Run a SPARQL query with ‘requests’
Demonstration on how to use the HRA KG either declaratively (via SPARQL) or imperatively (via JSON)

Link: https://github.com/cns-iu/hra-kg-supporting-information/blob/main/notebooks/hra-kg-queries.ipynb

How to Run Queries via our OpenAPI Spec

The query interface at https://apps.humanatlas.io/api/grlc/hra.html documents a growing number of canned, curated SPARQL queries. Each query has its own row, see Figure 1.

Figure 1. The row containing the query to get AS, CT, and B counts for all ASCT+B tables in the latest HRA release.

When you click on a row, it expands to reveal the entire documentation for the query, see Figure 2.

Figure 2. The expanded query documentation for https://apps.humanatlas.io/api/grlc/hra.html#get-/as-ct-b-counts.

The documentation presents four major parts: (1) the pre-made, canned SPARQL query to be run, (2) query string parameters that allow you to customize the query (in this case, you do not need to provide anything as there is a default that can be used), (3) buttons to pre-fill any required fields with examples (see second example below), clear all the fields, and running the query, and (4) the response once the query is run, see Figure 3, by pressing the Try button (Figure 2 (3), right).

Figure 3. The query response for https://apps.humanatlas.io/api/grlc/hra.html#get-/as-ct-b-counts.

Once the query is run, the response is printed in the response area (1). You can copy it to your clipboard with the copy button (2).

Some queries require you to specify query parameters before running it. The query at https://apps.humanatlas.io/api/grlc/hra.html#get-/asctb-in-table, for instance, requires a PURL for an ASCT+B table to be filled into the asctb query parameter, see the entire workflow in Figure 4.

Figure 4. Filling in defaults for https://apps.humanatlas.io/api/grlc/hra.html#get-/asctb-in-table, then running the query and inspecting the result.

The query needs to know which table you would like. It thus presents a query parameter that requires an identifier for an ASCT+B table (1), see Figure 4. The default value for the asctb query parameter is the PURL for the lymph node. Clicking the Fill Example button (2) will fill this default value in for you (3). When you then run the query, you get your response in the response field (4). Of course, you can add any other PURL. For example, the one for the brain is https://purl.humanatlas.io/asct-b/allen-brain.

Example Queries

Frequently used queries run via the SPARQL endpoint of the HRA API are listed in Table 1. All queries use data from the HRA v2.2 and the table reports counts for HRA DOs retrieved on December 17, 2024; note that the paper reports data available on December 17, 2024. To explore other queries, for additional documentation, and to get up-to-date results, visit https://apps.humanatlas.io/api/grlc/hra.html for HRA queries and https://apps.humanatlas.io/api/grlc/hra-pop.html for HRApop queries.

Table 1. Common queries run during HRA usage.

Description	Count	Query
HRA
Count of 3D Anatomical Structures	label,count 3D anatomical structures (no united and no reference organ AS),1224 3D anatomical structures (no united),1295 3D reference organs (no united),71	Query
Unique AS, CT, and B in HRA	asctb_type,count AS,4694 BM,2018 CT,1288	Query
Unique AS, CT, and B across all HRA versions	asctb_type,count AS,5800 BM,2531 CT,2268	Query
Digital objects counts in the latest HRA release	type,count 2d-ftu,23 asct-b,38 ctann,3 omap,23 ref-organ,71 vascular-geometry,1	Query
High-level stats about the latest HRA release	label,count # Nodes,242463 # Edges,1920570 # Edge Types,248	Query
HRApop
Number of Anatomical Structures with Cell Summaries	60	Query

Resources

Additional links to documentation of KG-relevant terminology and concepts:

A good overview of RDF Graph Data Model is provided by Stardog: https://docs.stardog.com/tutorials/rdf-graph-data-model
Wouter Beek (co-founder of Triply, see also https://wouterbeek.github.io/) recorded this detailed series of tutorials about SPARQL on YouTube.
A video about ontologies by co-author Mark Musen is here.
A talk titled “FAIR Data Knowledge Graphs – From Theory to Practice” by Tom Plasterer, Ph.D., Senior Director of Bioinformatics and BioPharmaceutical R\&D at AstraZeneca is available on YouTube.

Mermaid Diagrams

Entity relationship (ER) diagrams explain the relationships between entities within HRA DOs. ER diagrams for the hra-do-processor can be explored visually using the Mermaid (MMD) format (https://mermaid.js.org/). The following link types are used to describe cardinality and optionality between connected nodes:

||--||: Represents a mandatory-to-mandatory relationship, i.e., both entities are required for the relationship
||--|o: Represents a mandatory-to-optional relationship, where one side is required while the other side may or may not
||--}o: Represents a mandatory-to-many relationship, with one side required and the other allowing multiple occurrences.
o|--||: Represents an optional-to-mandatory relationship, where one side may or may not be required, but the other is

Figure 5 below illustrates how these ER link types are rendered in the ER diagrams in Figures 6-9.

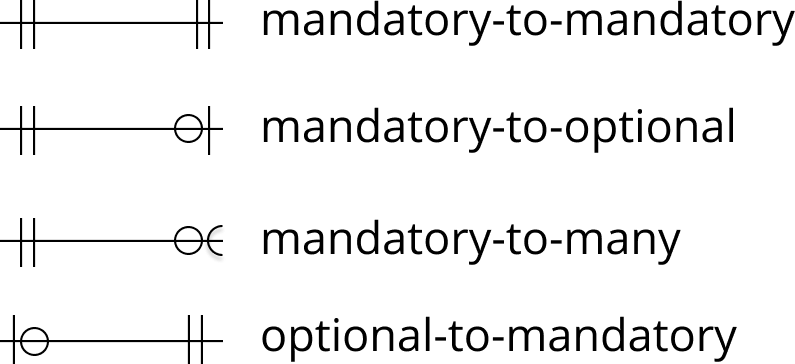

Figure 5. A legend explaining different visuals for explaining ER link types in the HRA DO types of the HRA.

Exemplarily shown below are MMD diagrams for the 2d-ftu (Figure 6), asct-b (Figure 7), ref-organ (Figure 8), and ds-graph (Figure 9) HRA DO types. All MMD diagrams are available at https://github.com/hubmapconsortium/hra-do-processor/blob/main/er-diagrams.md/. Note that in the figures in the paper, we omitted underscores in edge labels and added spaces for legibility.

Figure 6. An ER diagram for the 2d-ftu HRA DO type. Click here to download the SVG version.

Figure 7. ER diagram for the asct-b HRA DO type. Click here to download the SVG version.

Figure 8. ER diagram for the ref-organ HRA DO type. Click here to download the SVG version.

Figure 9. ER diagram for the ds-graph HRA DO type. Click here to download the SVG version.
